Greenwich Wheels - 8.0mmWHLP80 • by G&DNGRS

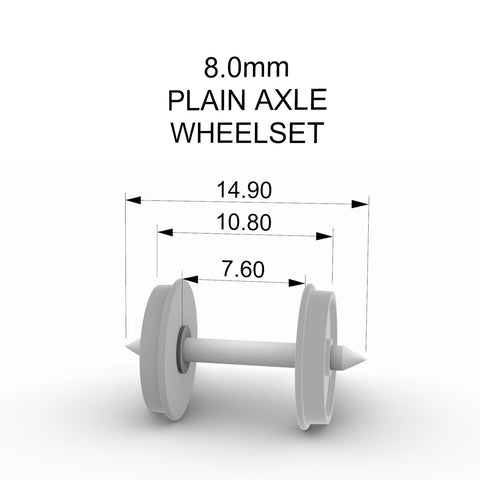

The wheels for 9mm gauge track are manufactured from brass, have a narrow tyre and fine flanges, which results in a 7.8mm back to back dimension. The design of the web allows for spokes to be simulated by an etch overlay.

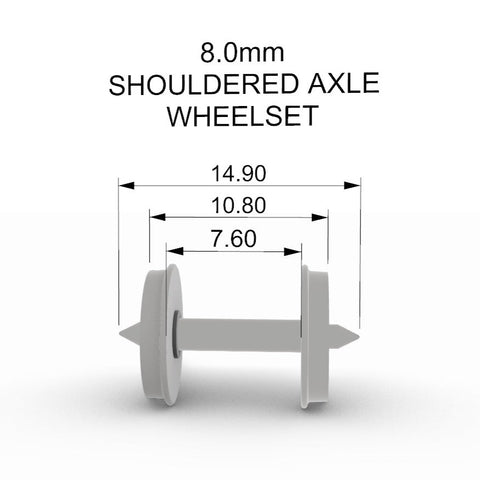

All the wheelsets in this range have a common brass shouldered pinpoint axle. The centre of the axle is 2mm diameter and the pinpoints 1.5mm diameter. This design will facilitate the use of a Tenshodo gear without a shaft adaptor.
All the brass components are blackened with an electrically conductive coating.
