Greenwich Wheels - 6.2mm


The wheels for 9mm gauge track are manufactured from brass, have a narrow tyre and fine flanges, which results in a 7.6mm back to back dimension. The design of the web allows for spokes to be simulated by an etch overlay.

Two axle designs in this range have a common brass pinpoint axle.

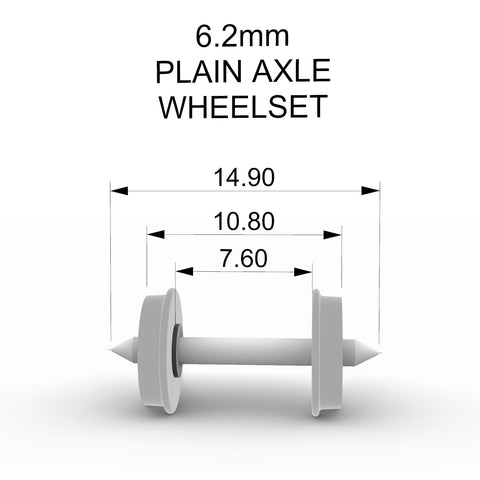

  • For the plain axle wheelsets the entire axle is 1.5mm diameter brass with pinpoints.

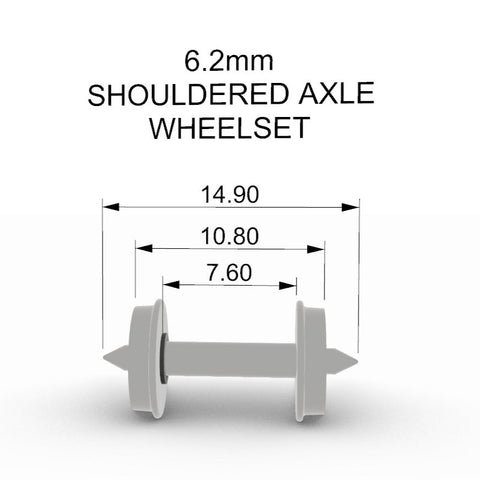

  • For the shouldered axle wheelsets the central portion of the axle is 2mm diameter and the pinpoints 1.5mm diameter. This design will facilitate the use of a Tenshodo gear without a shaft adaptor.

All the brass components are blackened with an electrically conductive coating.
