Mosskito Steel Square Ended Axles

MKAXSQ205 • by Mosskito Narrow Gauge

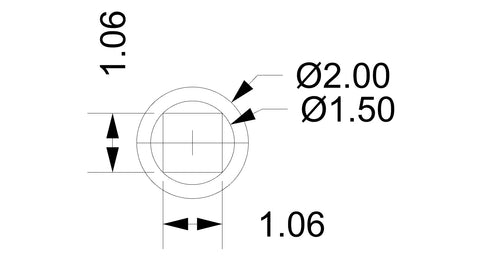

These axles were designed for the Baldwin Gas Mechanical that has a true outside frame. They can be used with custom etched cranks or Mosskito Cranks. The square end makes it easy to quarter the wheels. They can used with Mosskito Hornblocks and Cranks

These axles are supplied in pairs of their respective sizes.

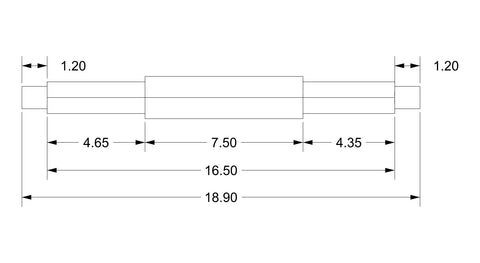

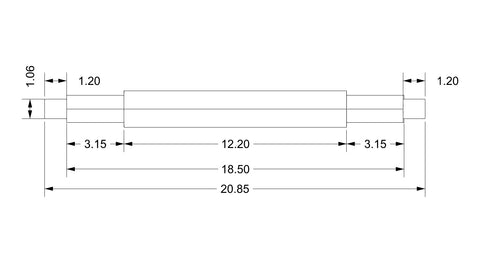

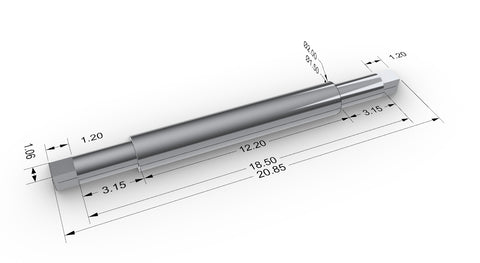

The 16.5mm variant is intended for driving axles. The 20.5mm variant for jack shafts.

Please note: The 2mm section on the jack shaft (20.5mm) version is wider than the back to back measurement for 009.
